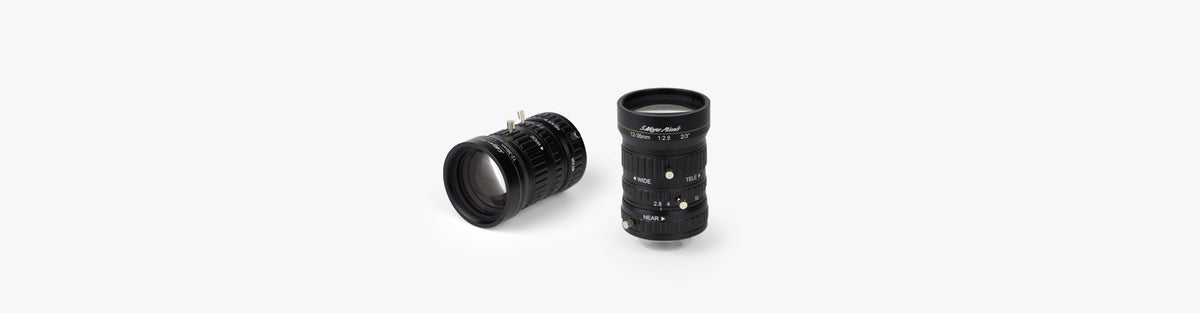

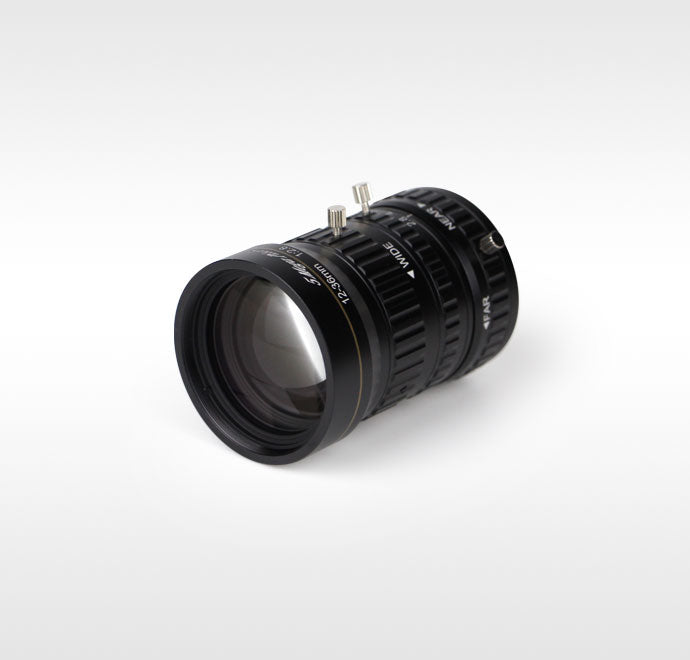

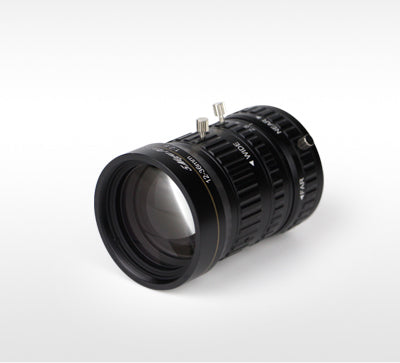

LBTEK LBMV1236M-5MP 12-36mm 5MP Zoom Lens 2/3¡å C-Mount

LBTEK FA lenses are optimized for machine vision light sources and sensors, offering high resolution, excellent imaging quality, high transmittance and good stability. Compared with fixed focal length lenses, zoom lenses can change the field of view by adjusting the focal length, providing more flexible imaging capability. In industrial inspection, one zoom lens can replace multiple fixed focal length lenses, simplifying the inspection system. They are widely used in machine vision and industrial automation applications such as workpiece inner hole defect detection, iron core inner wall flaw identification and label character inspection.

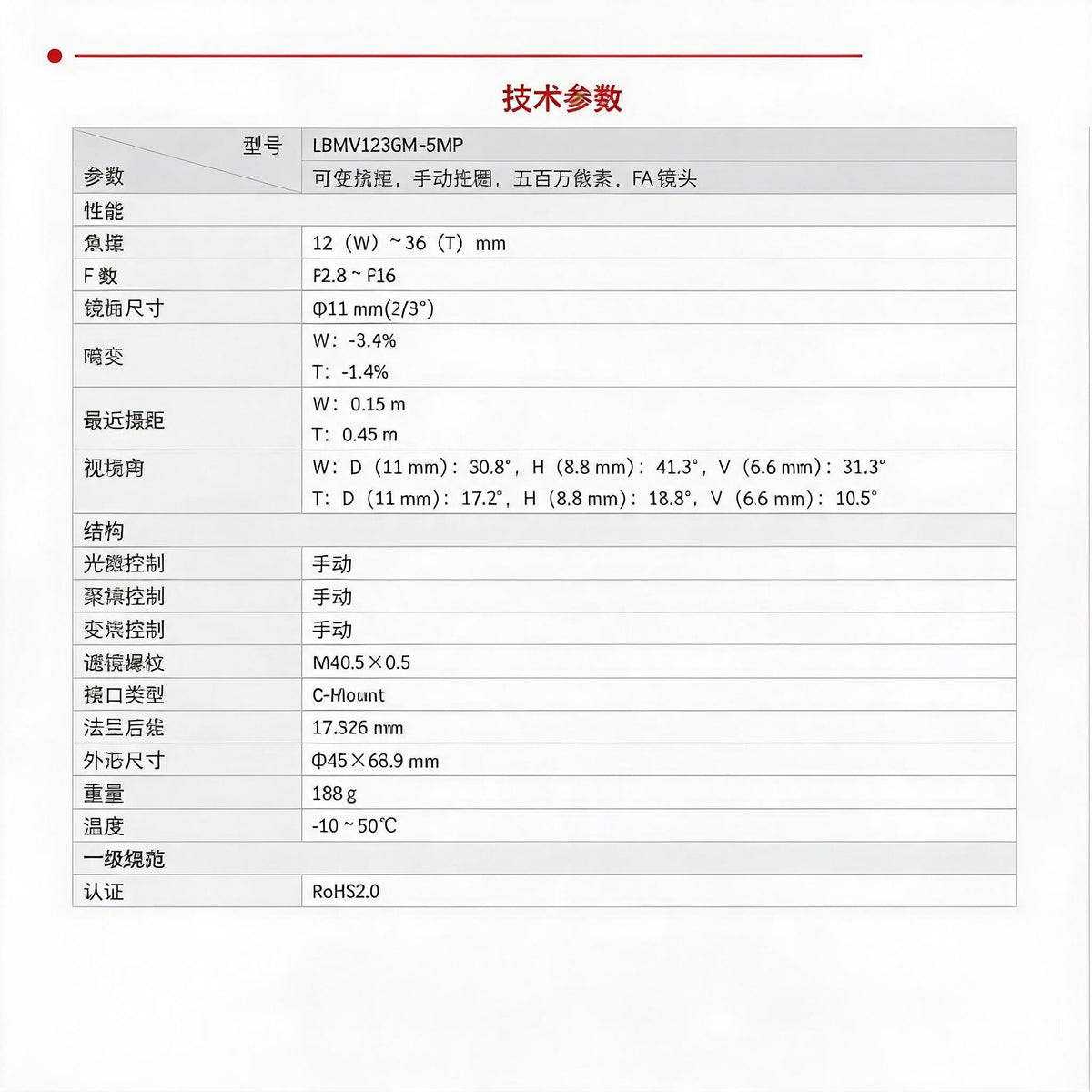

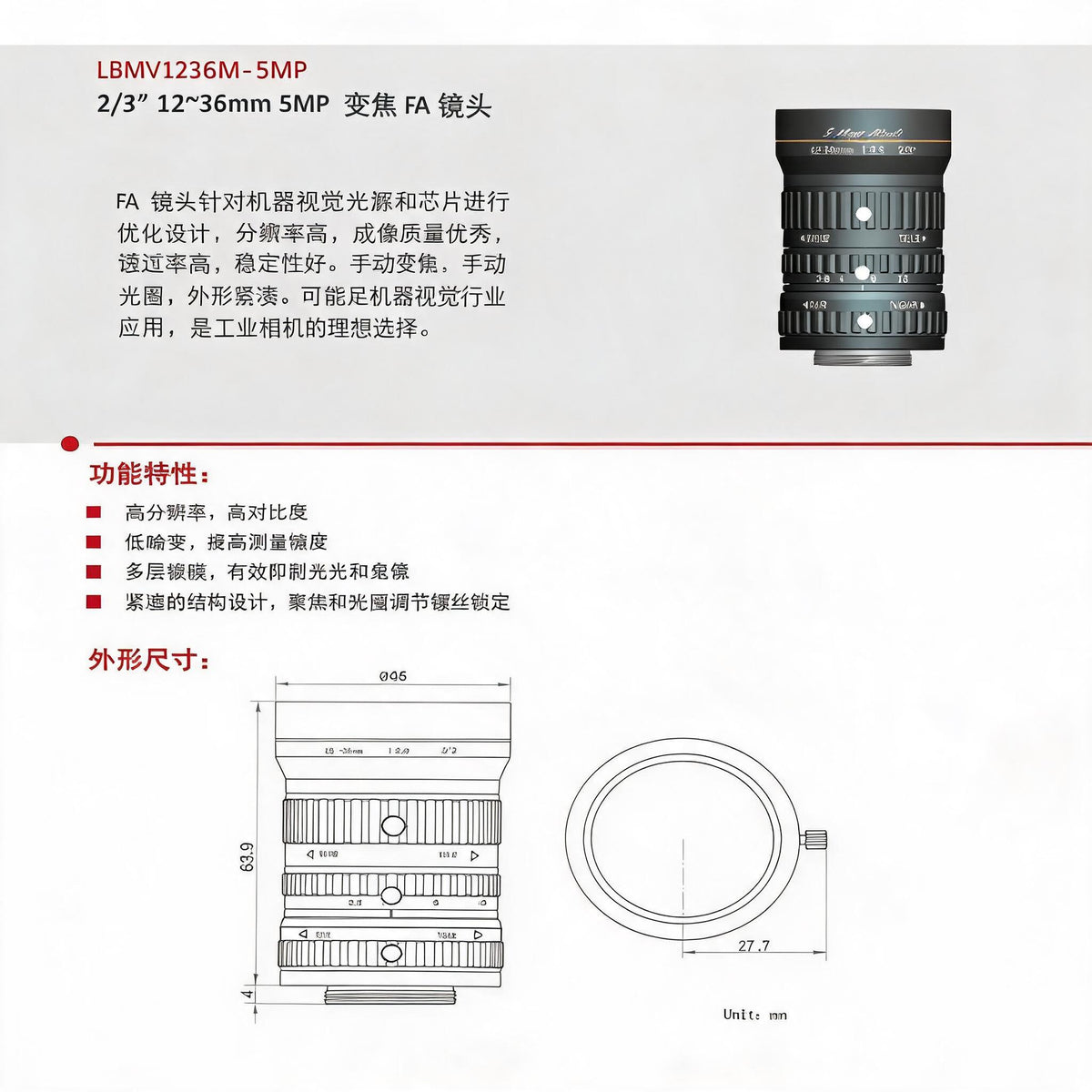

Specifications: - Focal Length Range: 12£¨W£©-36£¨T£©mm - F Number: F2.8-F16 - Min Working Distance: W£º0.15 m T£º0.45 m - Image Circle: ?11 mm(2/3¡壩 - Iris Control: Manual - Focus Control: Manual - Zoom Control: Manual - Magnification: 3X - Filter Thread: M40.5¡Á0.5 - Flange Back Focus: 17.526 mm - Field of View: W T D£¨11 mm£©£º50.8¡ã D£¨8.8 mm£©£º17.2¡ã H£¨8.8 mm£©£º41.3¡ã H£¨8.8 mm£©£º13.8¡ã V£¨6.6 mm£©£º31.3¡ã V£¨6.6 mm£©£º10.5¡ã - Interface Type: C-Mount - Dimensions: ?45¡Á63.9 mm
